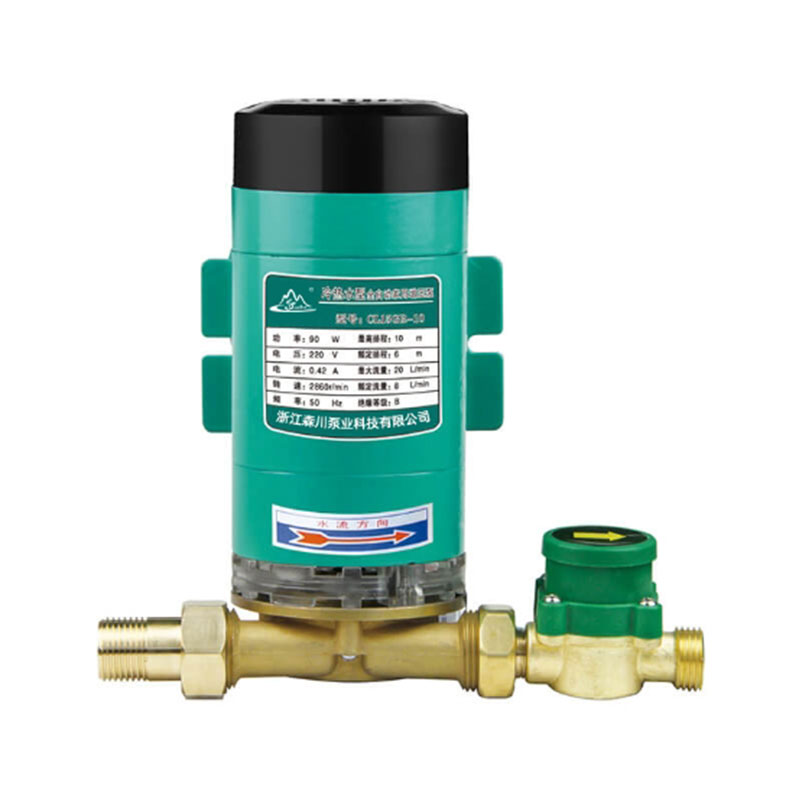

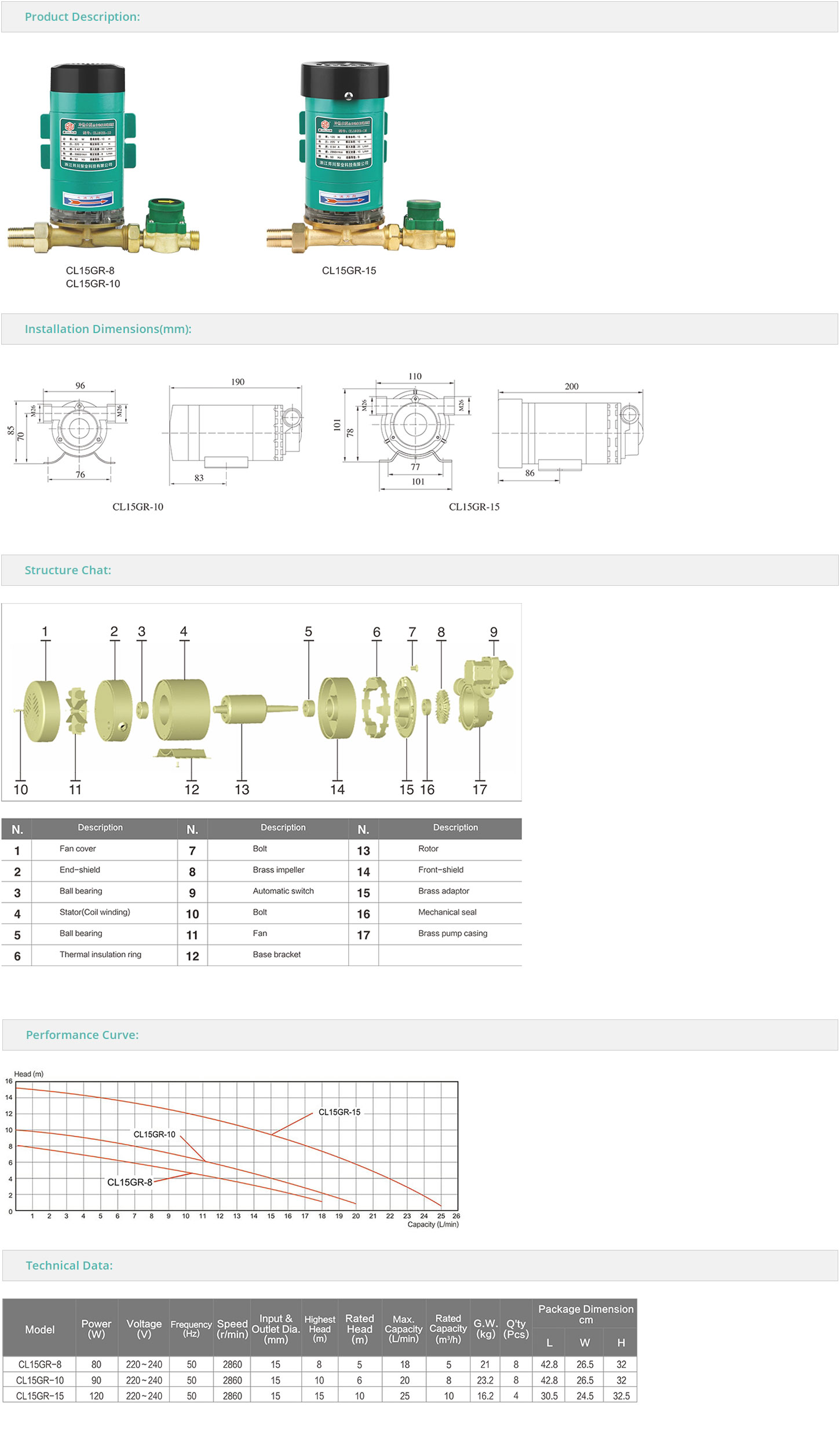

Automatic booster pump CL15GR-8/10/15

Production Introduction:
Automatic switch using the principle of electronics, flow control, some models of water control adopt Hall induction principle, higher sensitivity, no faults; automatic pressurization and automatic shutdown. Convenient, simple, energy saving, brass pump body, brass impeller, stainless iron shaft, corrosion-resistant, no rust , water control switch is good sealing performance, water hygiene, high head, large flow, good starting performance, automatic switch sensitive, low-temperature motor design, small size, low noise, the appearance of exquisite appearance, long service life.

Application Fields:
For pressurization of domestic tap water, solar system pressurization, hot or cold water pipeline pressurization, fish ponds and tank oxygen system etc. GR series can be used for gas hanging boiler boosting, GZ series can suck tap water from one or two floor below directly.

Application limits:
1.Solid content<0.1%
2.Liquid PH rang 6.5-8.5
3.Ambient temperature range: 0-40°C, relative humidity less or equal to 85%, dry condition with less dust.
4.Working voltage: ± 10% of rated voltage.
