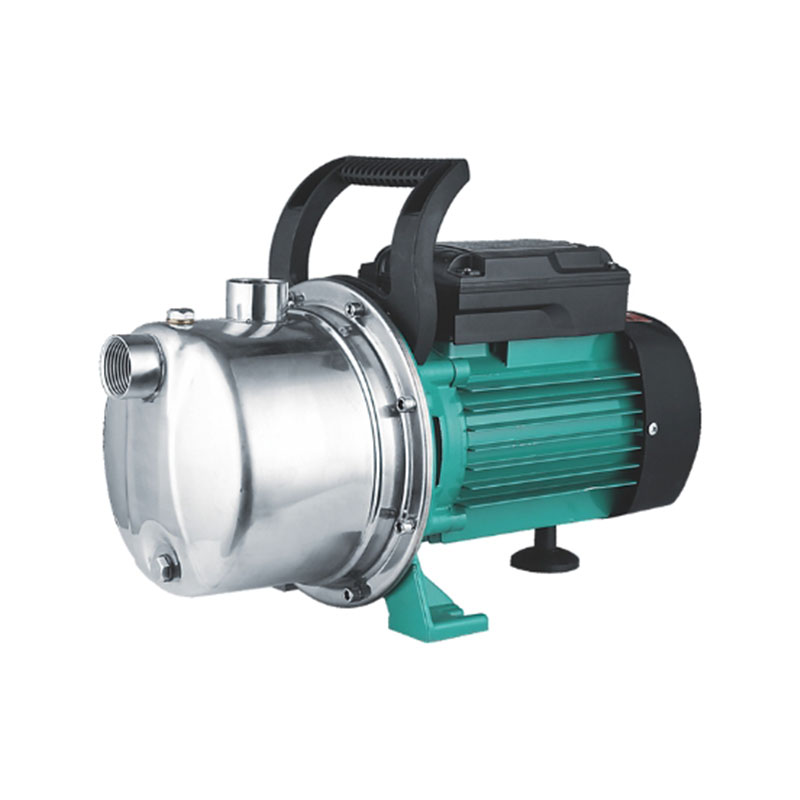

Self-priming JET pump JET-370S/../1500S

Application:
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The self-priming jet pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Working conditions:
The maximum fluid temperature is ≤70 °C
Maximum acceptable pressure 10bar
Maximum ambient temperature 40 °C

Motor:
※Two-pole induction motor(n=2850 r.p.m)
※Insulation Class B
※Protection IP44
※Continuous service S1
※Thermal protector for single phase
※Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request

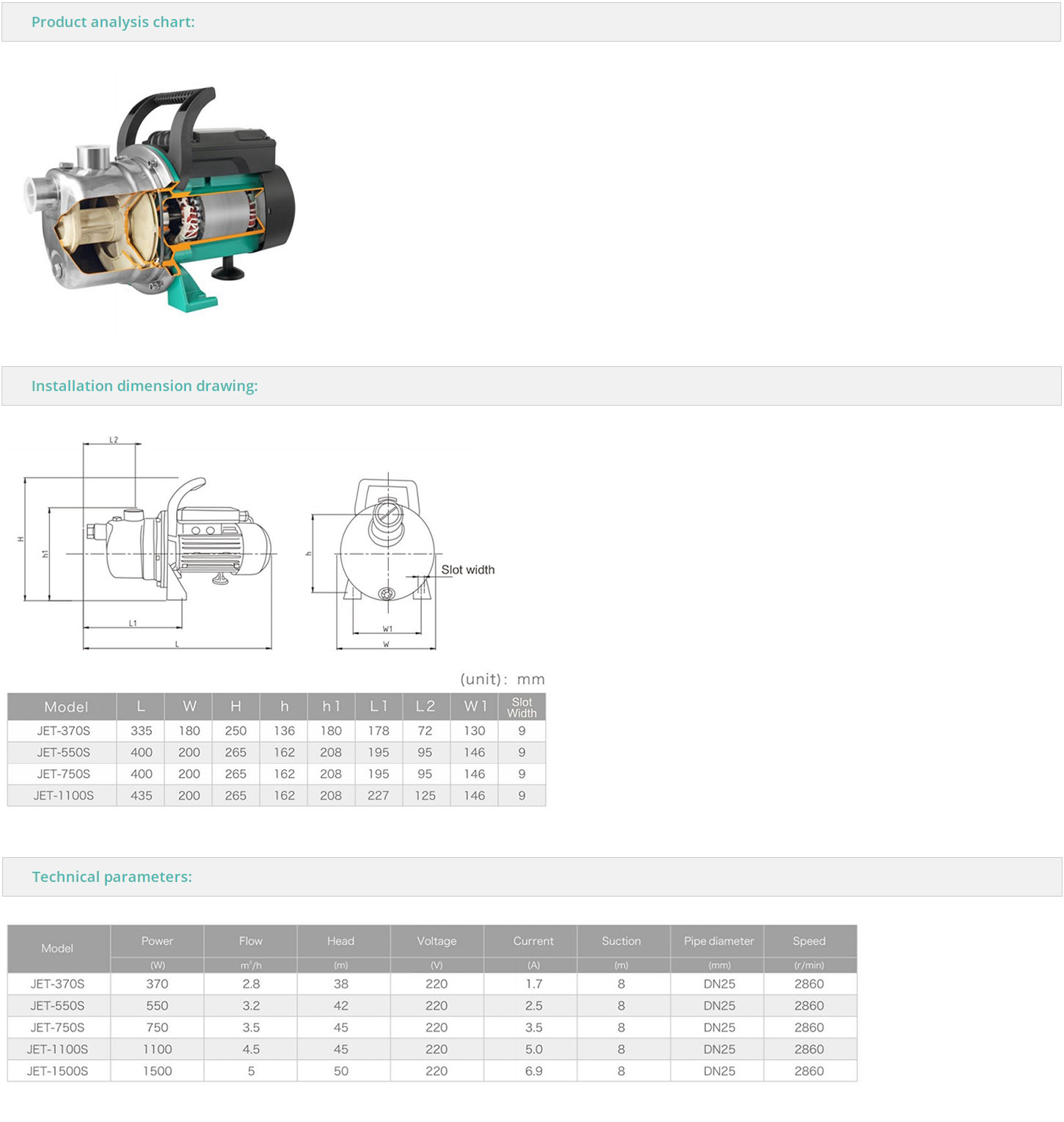

Component Construction
※ Pump body:
※ Pump support:
※ Motor housing:
※ Impeller:
※ Diffuser:
※ Motor shaft:
※ Mechanical seal: AISI304SS
Aluminum
Aluminum
Brass, AISI304 SS if request
Noryl
AISI304 SS
SIC/Graphite
