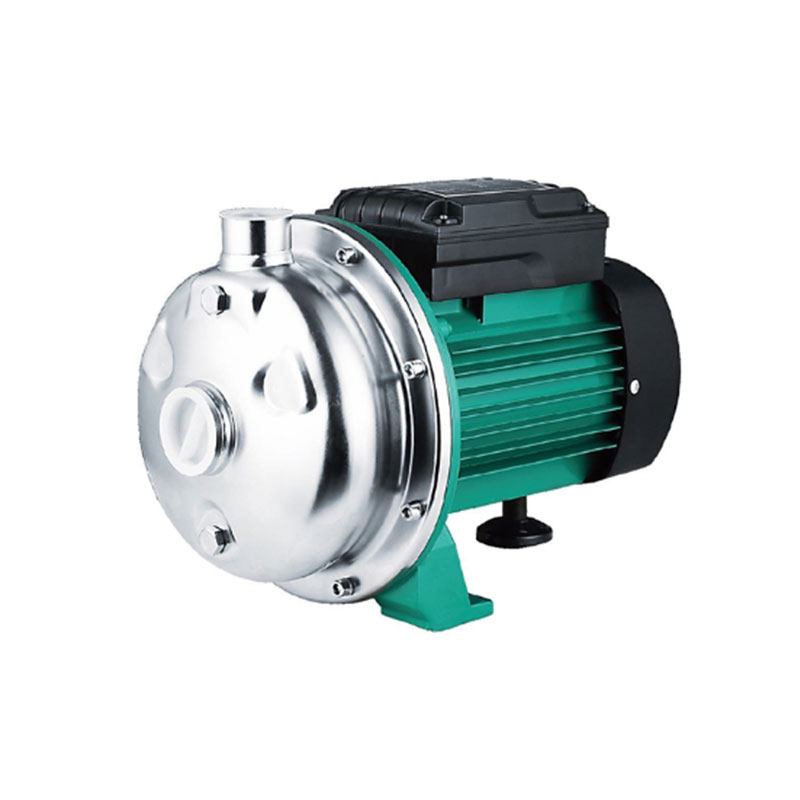

CPMS Clean Water Centrifugal Pump CPMS-130/../180

Application:
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Motor ：
※Two-pole induction motor(n=2850 r.p.m)
※Insulation Class B
※Protection IP44
※Continuous service S1
※Thermal protector for single phase
※Single-phase 220V/50Hz, 60Hz if request Three-phase 380V/50Hz, 60Hz if request

Operating Conditions:
※ Liquid temperature up to 60°C.
※ Ambient temperature up to 40°C.
※ Total suction lift up to 3m

Component Construction
※ Pump body:
※ Pump support:
※ Motor housing:
※ Impeller:
※ Motor shaft:
※ Mechanical seal: AISI304 SS
Aluminum
Aluminum
AISI304 SS
AISI304 SS
SIC/Graphite
